Polymers

Polymers

Drag window to rotate, shift-drag window vertical
to zoom, option/ALT drag window to turn

Monomer and
Reaction Type
Ethylene
    (PE addition)
Propylene
    (PP addition)
Isobutylene
    (PIB addition)
Terephthalic Acid
    (PET condensation)
    (PBT condensation)
    (PBO condensation)
Ethylene Glycol
    (PET condensation)
    (PEN condensation)
    (PU addition)
Butanediol
    (PBT condensation)
Dimethyl
    Terephthalate
    (transesterification
    PET condensation)
Naphthalene-
    dicarboxylic Acid
    (PEN condensation)
Styrene
    (PS addition)
Vinyl Chloride
    (PVC addition)
Vinylidene
    Chloride
    (PVDC addition)
Vinylidene
    Fluoride
    (PVDF addition)
Tetrafluoro-
    ethylene
    (PTFE addition)
Lactic Acid
    (PLA condensation)
Lactide
    (PLA ring-opening)
Glycolic Acid
    (PGA condensation)
Glycolide
    (PGA ring-opening)
Propylene
    Carbonate
    (PTMC ring-opening)
Methyl
    Methacrylate
    (PMMA addition)
Vinyl Acetate
    (PVAc addition; then
     hydrolyzed to PVA)
Butanal or
    Butyraldehyde
    (PVB condensation
    with PVA)
Acrylonitrile
    (PAN addition)
Ethyl
    Cyanoacrylate
    (PECA addition)
Butadiene
    (BR addition)
Isoprene
    (IR addition)
Chloroprene
    (Neoprene addition)
Trioxane
    (POM ring-opening)
Formaldehyde
    (POM addition)
    (UF condensation)
Urea
    (UF condensation)
Ethylene Oxide
    (PEG ring-opening)
Dimethylphenol
    (PPO oxidative)
Caprolactone
    (PCL ring-opening)
Caprolactam
    (Nylon6 ring-opening)
Laurolactam
    (Nylon12 ring-opening)
Amino-
    dodecanoic Acid
(Nylon12 condensation)
Adipic Acid
(Nylon66 condensation)
Hexanediamine
(Nylon66 condensation)
Diamino-
    resorcinol
    (PBO condensation)
Pyromellitic
    Dianhydride
    (Kapton condensation)
Diaminodiphenyl
    Ether
    (Kapton condensation)
Terephthaloyl
    Chloride
    (Kevlar condensation)
    (PET condensation)
p-Phenylene-
    diamine
    (Kevlar condensation)
Isophthaloyl
    Chloride
    (Nomex condensation)
m-Phenylene-
    diamine
    (Nomex condensation)
Bisphenol A
    (Lexan condensation)
Phosgene
    (Lexan condensation)
Difluoro-
    benzophenone
    (PEEK condensation)
Disodium
    Hydroquinone
    (PEEK condensation)
Dichlorodiphenyl
    sulfone
    (PPSU condensation)
Dihydroxy-
    biphenyl
    (PPSU condensation)
Norbornene
    (PN ring-opening)
    (PNB addition)
    depending on
    catalyst choice
Diphenyl-
    methane-
    diisocyanate
    (PU addition)
Dichloro-
    dimethylsilane
    (PDMS condensation
    with H₂O)
Acetylene
    (PA condensation)
Pyrrole
    (PPy oxidative)
Thiophene
    (PTh oxidative)
Ethylenedioxy-
    thiophene
    (PEDOT oxidative)

Addition
polymers from
monomers with
C=C giving an
all carbon
backbone
(extra H added
to chain ends)
or
adding -OH
across N=C=O
making urethane
or
opening H₂C=O
to form a
-CH₂O- chain.

Condensation
polymers from
difunctional
monomers with
small-molecule
loss (H₂O, HCl).

Ring-opening
polymers from
cyclic monomers
(extra atoms
added to
chain ends).

Oxidative
polymerization
via loss of one
electron to form
a radical cation,
coupling with
another radical
and proton loss
or
linking C-H or O-H
using ½O₂ to also
produce H₂O.

Catalysts or
free-radical
initiators
required for
polymerization.

Copolymers
have segments
from more than
one polymer.

Polymer and
Recycling Codes
Polyethylene (high density)

Polyethylene (low density)

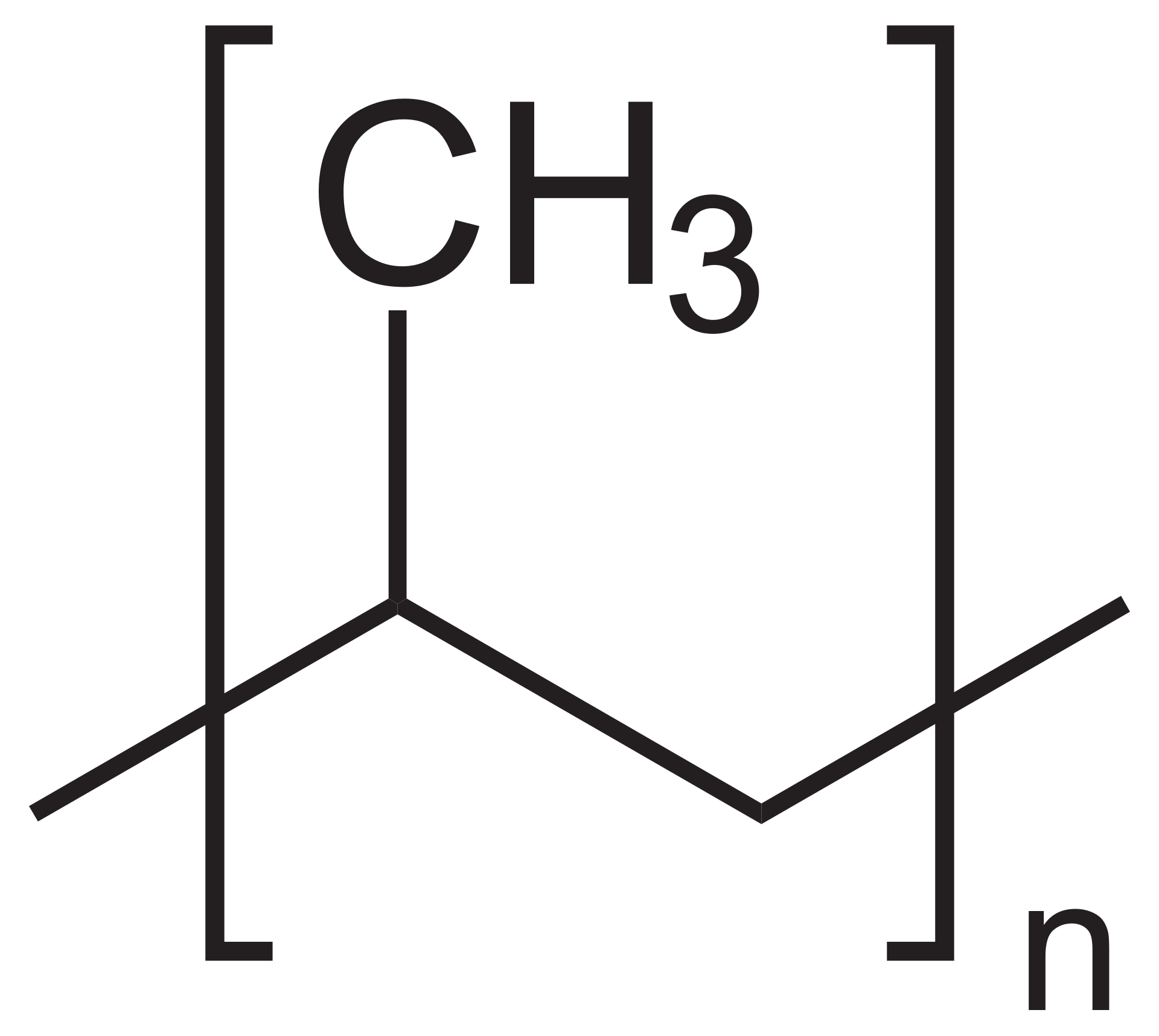

Polypropylene (isotactic)

Polypropylene (syndiotactic)

Polyisobutylene

PIB

Polyethylene Terephthalate

Polybutylene Terephthalate

PBT

Polyethylene Naphthalate

PEN

Polystyrene (atactic)

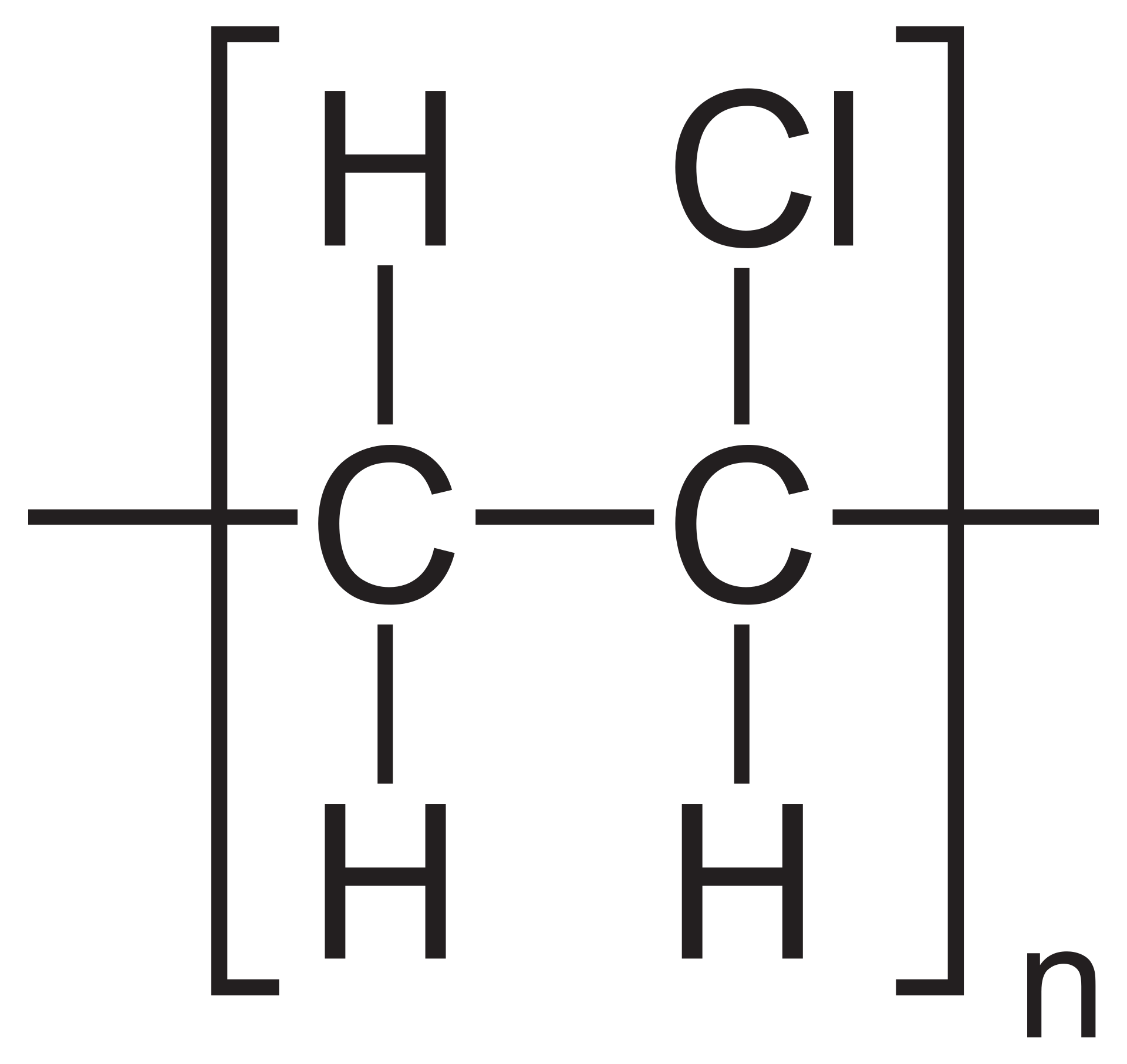

Polyvinyl chloride (atactic)

Polyvinylidene chloride

PVDC

Polyvinylidene fluoride

PVDF

Polytetrafluoroethylene

PTFE

Polylactic Acid (isotactic)

PLA

Polyglycolic Acid

PGA

Polytrimethylene carbonate

PTMC

Polymethyl methacrylate
(atactic)

PMMA

Polyvinylacetate (atactic)

PVAc

Polyvinylalcohol (atactic)

PVA

Polyvinylbutyral (atactic)

PVB

Polyacrylonitrile (atactic)

PAN

Polyethylcyanoacrylate
(syndiotactic)

PECA

Polybutadiene Rubber (cis)

Polybutadiene Rubber (trans)

Polyisoprene Rubber (cis)

Polyisoprene Rubber (trans)

Polychloroprene

Neoprene

Polyoxymethylene

POM
Ends capped with acetic anhydride

Polyethylene glycol

PEG

Polyphenylene oxide

PPO

Polycaprolactone

PCL

Polycaprolactam Nylon 6

Polylaurolactam Nylon 12

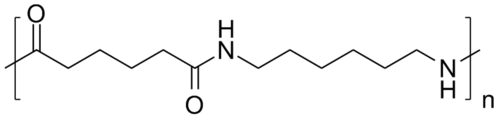

Polyamide Nylon 66
polyhexamethylene adipamide

Phenylenebenzobisoxazole

PBO

Polyimide Kapton
poly-p-oxydiphenylene-pyromellitimide

p-Polyaramid Kevlar
poly-p-phenylene terephthalamide

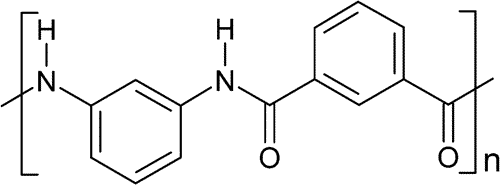

m-Polyaramid Nomex
poly-m-phenylene isophthalamide

Polycarbonate Lexan
polybisphenol A carbonate

Polyether ether ketone
poly(oxyphenylene)₂carbonylphenylene

PEEK

Polyphenylsulfone

PPSU

Polynorbornene (ring-opening)

Polynorbornene (addition)

PNB

Polyurethane

Urea formaldehyde

Polydimethylsiloxane

PDMS

Conducting polymers
Polyacetylene (trans)

Polyacetylene (cis)

Polypyrrole

PPy

Polythiophene

PTh

Polyethylenedioxythiophene

PEDOT

Only small portions of the polymers are shown; there may be many thousands of repeat units. Atactic polymers do not have stereochemical regularity so conformations shown are random.

Display options

Monomers modified from PubChem. Formulas modified from Wikipedia.
Polymers drawn using jsmol with local force field energy minimization.
For polymer information see USM Polymer Science Learning Center.
This page created by George Lisensky, Beloit College.
